380V/16A Built In CDN EMC Test Equipment 5KV Output Voltage Electrical Fast Transient Burst Generator IEC61000-4-4 Compliant

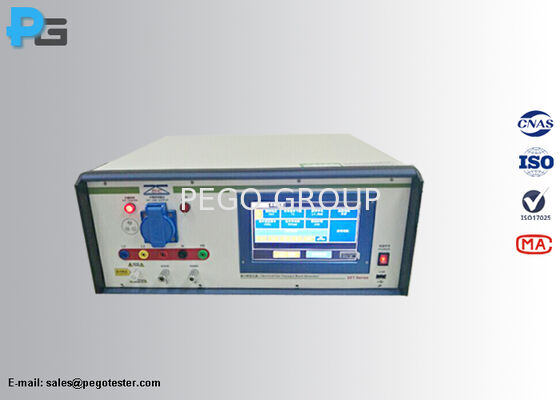

Gambar besar : 380V/16A Built In CDN EMC Test Equipment 5KV Output Voltage Electrical Fast Transient Burst Generator IEC61000-4-4 Compliant

Detail produk:

Tempat asal:	Cina
Nama merek:	PEGO
Sertifikasi:	Third-Lab Calibration Certificate
Nomor model:	EFT-5K

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1SET
Harga:	USD5000-USD7000/set
Kemasan rincian:	Karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Money Gram, Paypal

Kontak

Detil Deskripsi produk

Standar:	IEC61000-4-4,IEC/EN60601-1-2, IEC/EN61000-6-1, IEC/EN61850-3, ANSI/EEE C62.41	Tegangan Keluaran:	5kV
CDN:	380V/16A, 380V/30A	Impedansi:	50Ω ±20％
Model Kopling:	L1,L2, L3, N,PE	Kekuatan kerja:	AC220±10％,50/60Hz, 300W
Jaminan:	12 bulan	Pengiriman:	melalui DHL/FEDEX
Menyoroti:	380V/16A Built In CDN EMC Test Equipment , 5KV Output Voltage Electrical Fast Transient Burst Generator , IEC61000-4-4 Compliant EFT/B Generator

380V/16A Built-In CDN EMC Test Equipment 1~255 Electrical Fast Transient Burst Generator

This EMC Test System Electrical Fast Transient/Burst Generator (EFT/B) simulates electrical fast transient or burst phenomena. The repetitive fast transient test applies bursts consisting of multiple fast transients coupled into power supply, control, signal, and earth ports of electrical and electronic equipment. Fully compliant with IEC61000-4-4 and GB/T17626.4 standards, this equipment is widely used in industrial control appliances, household appliances, medical equipment, components, and automotive control equipment.

The burst generator offers test voltages from 0.25KV to 5KV, covering all test levels with user-definable settings. Built-in coupling and decoupling network (CDN) supports 380V/16A or 380V/30A configurations. High amplitude, short rise time, and high repetition rate ensure complete compliance with IEC61000-4-4 requirements.

Key Features

7-inch LCD touch screen for easy operation and software updates
1000-group memory storage capacity
Built-in 3-phase 5-wires coupling and decoupling network (20A)
Imported high-power non-inductive resistors ensure stable, non-deformed waveforms
Advanced coupling network technology with low attenuation and abundant power
Built-in temperature-humidity sensor for real-time environmental monitoring
Self-diagnosis function detects high voltage and impulse output abnormalities

Technical Specifications

Parameter	EFT-5K16	EFT-5K30
Open circuit output voltage	0.25－5kV ±5％
50Ω load output voltage	0.125－2.5kV ±5％
Wave shape of the pulse	5/50ns, 50Ω/1000Ω load
Rise time	5ns ±30％, 50Ω load / 5ns ±30％, 1000Ω load
Duration	50ns ±30％, 50Ω load / 50ns －15/+100ns, 1000Ω load
Impedance	50Ω ±20％
Output polarity	Negative/positive
Repetition frequency	0.1－1200.0kHz ±10％
Burst duration (Standard)	15ms@2.5kHz/5kHz, 750μs@100kHz, 250μs@300kHz
Burst duration (Adjustable)	Pulse number adjustable 1-255
Burst period	100－999ms
Burst mode	Synchronous or asynchronous
Synchronous phase	Free set at 0－360°, resolution: 1°
Test function	IEC standard or free test mode (1000 groups)
Built-in coupling and decoupling network (3-phase 5 wires)	AC: 3-phase 380V, 16A, 50/60Hz DC: 380V, 16A (Max)	AC: 3-phase 380V, 30A, 50/60Hz DC: 380V, 30A (Max)
Coupling mode	L1, L2, L3, N, PE, freely setup
Coupling capacitors	33nF ±10％
Environment requirements	Temperature: 15°C－35°C; Humidity: 10%－75%
Power requirements	AC220±10％, 50/60Hz, 300W
Dimension	470mm(W)215mm(H)500mm(depth)
Weight	About 25kg
Language	English-Chinese conversion

Equipment Interface

Front and rear panel configuration and controls:

Frequently Asked Questions

What is the warranty period of the equipment?

The equipment warranty is 12 months upon receipt of the equipment.
Can you provide third-lab calibration certificate?

Yes, the equipment can be sent to ISO17025 authorized third-party laboratories for calibration certificate, with charges borne by the buyer.
Does this equipment have English operation interface?

Yes, the operation interface includes English instructions.
What should be paid attention to when using this equipment?
- Do not use in high humidity conditions (relative humidity: 30% to 60%)
- Working power: AC220V±10%, 50/60Hz
- F.G. terminal must be well grounded
- Do not touch P.OUT terminal after power is applied
- Avoid inverting instrument to prevent vibration damage
- Verify correct wiring connections before powering equipment
- Ensure instrument is in stop status before shutdown
- Follow IEC61000-4-4 standard requirements for test configuration
